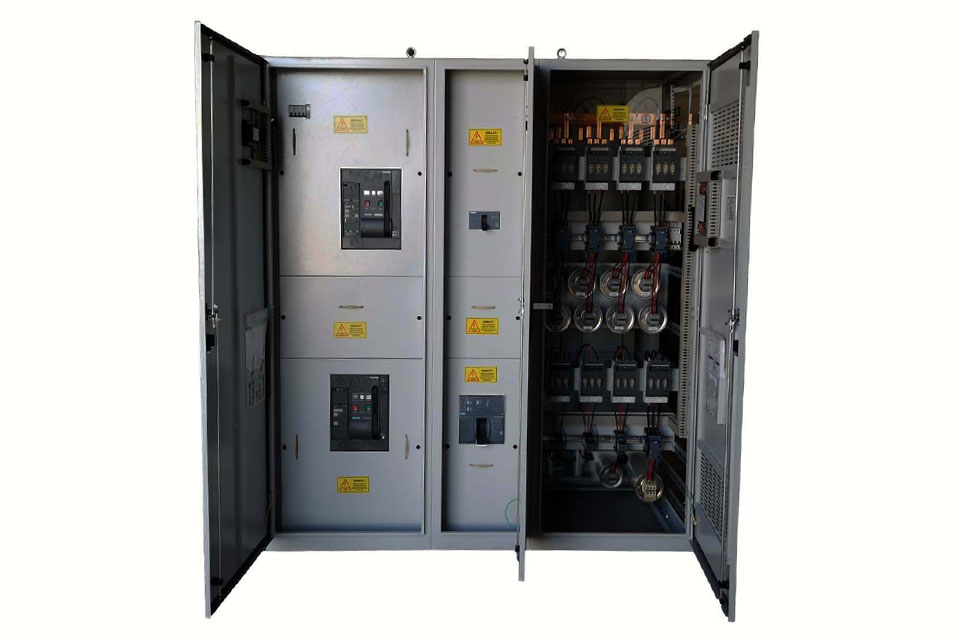

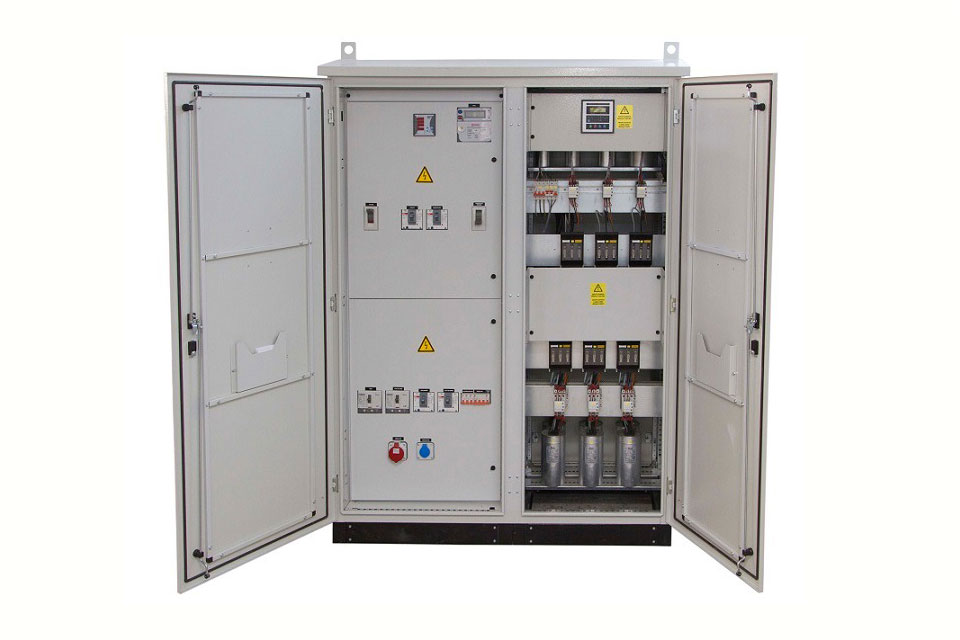

Main Distribution Board

Main Distribution Board

A main distribution panel (MDP) is an electrical panel that ensures the safe and controlled distribution of electrical energy throughout a facility. It is commonly used in large buildings, factories, and commercial spaces with extensive electrical systems.

Functions:

• Distributes electrical energy from the main power source to sub-panels and end-users.

• Balances loads to optimize energy flow.

• Provides protection against overcurrent, short circuits, and leakage currents.

Components:

• Main Switch: Controls the entire electrical system by turning it on or off.

• Fuses and Circuit Breakers: Protect the system from overcurrent and short circuits.

• Current Transformers: Used to monitor and measure energy consumption.

• Voltage Indicators: Ensure voltage monitoring for system control.

Application Areas:

• Shopping malls

• Factories and industrial facilities

• Large residential projects

• Hospitals and hotels

Regular maintenance and inspection of the main distribution panel are crucial for ensuring safe electrical distribution.
